WIAP DM2 XA
CNC Horizontal bed Lathe
10 axes and 8 guideways
WIAP DM2 XA for machining length 7000 mm plastic pipes for power plants
Made in Switzerland

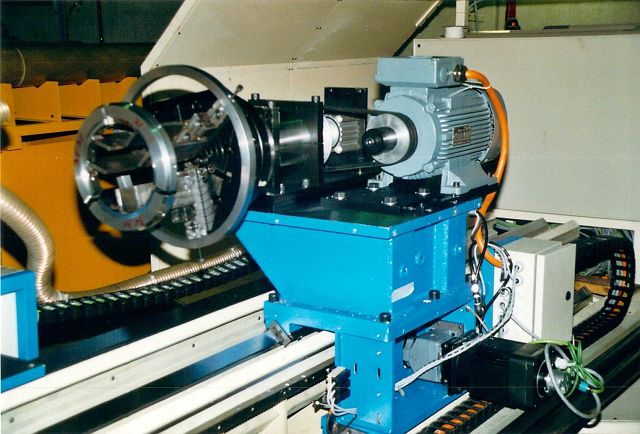

P1a: The WIAP DM2 XA machine is a special version with 8 tracks. 4 carriages which can drive past without collision.
P1b: The welded antivibration machine bed by the VDSF process.
The machine bed is made of 4 - edge tubes, vibration relaxed and reducing vibrations.
P1c: A quick clamping solution of the jaws to clamp the workpieces inside.
P1d: 8 guides for two headstocks; two Z - cross slide; two Zentrierlünetten.
P1e: Two turret on the machine with two WIAP turret discs.
Construction of the whole machine of WIAP. Hanspeter Widmer.
